NUX B-3 PLUS MIC BUNDLE

NUX B-3 PLUS MIC BUNDLE

A Revolution of the Wireless Mic Experience

ชุด B-3 PLUS MIC BUNDLE ใช้อัลกอริทึมไร้สาย 2.4GHz ล่าสุดของเราพร้อมกับไมโครโฟนแบบไดนามิก NUX NDM-3 ปลั๊กตัวส่งสัญญาณ (TX) เข้ากับไมโครโฟนของคุณ, ตัวรับ (RX) เข้ากับระบบ PA, แล้วคุณก็พร้อมที่จะเริ่ม ระบบ B-3 Plus สามารถคู่แบบอัตโนมัติด้วยการสแกน 6 ช่องทางและสามารถหลีกเลี่ยงการรบกวนจาก Wi-Fi ทำให้ง่ายในการใช้งาน! ปลั๊กเข้า, เปิดมันขึ้น, B-3 PLUS MIC BUNDLE ทำให้ทุกคนสามารถได้รับคุณภาพเสียงไมโครโฟนไร้สายที่ดีได้ง่าย.

Buskers, singers, or speakers who use microphones to communicate with audiences, wireless offers you the freedom of unrestricted movement. No wires at all and no costly batteries required as it is fully rechargeable. With the B-3 PLUS MIC BUNDLE, you won’t go wrong for a revolution of the wireless experience. You’ll never want to go back to the mic cable again.

Great Performance

The range limit of the B-3 Plus is 100-feet outdoor and the latency is less than 3.5ms. Hi-Resolution audio quality: 24-bit / 44.1 kHz. This range is perfect for just about any space or venue, you can walk 100 feet away from the receiver and the signal will flow with no latency or a break. The long lasting built-in battery simply can be charged with USB cable which is included the package.

How to Operate?

Connect the TX to microphone and connect the RX to a device you want to connect the microphone (amplifier, speaker, mixer, camera or mobile phone).

If you are using B-3 PLUS MIC BUNDLE to connect to a camera or a mobile phone, please use the included converter cables.

Turn on the TX and the RX

The auto pairing with channel selection will detect the current Wi-Fi environment and choose the best channel to operate.

Please make sure the connected device is ON and check the signal before you increase the volume.

Please make sure the connected device is ON and check the signal before you increase the volume.

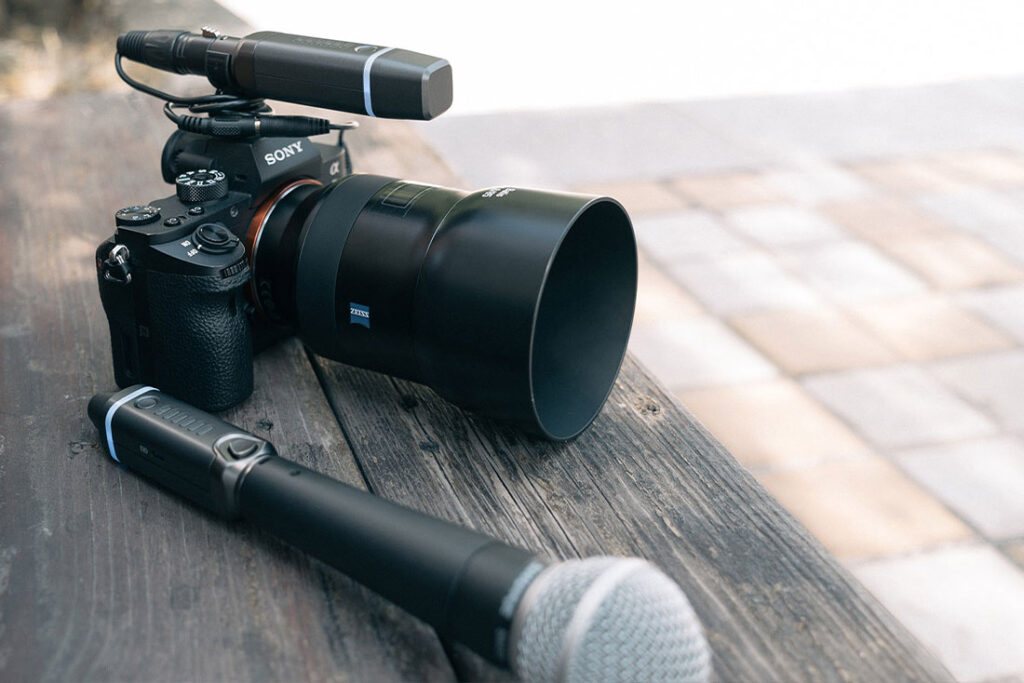

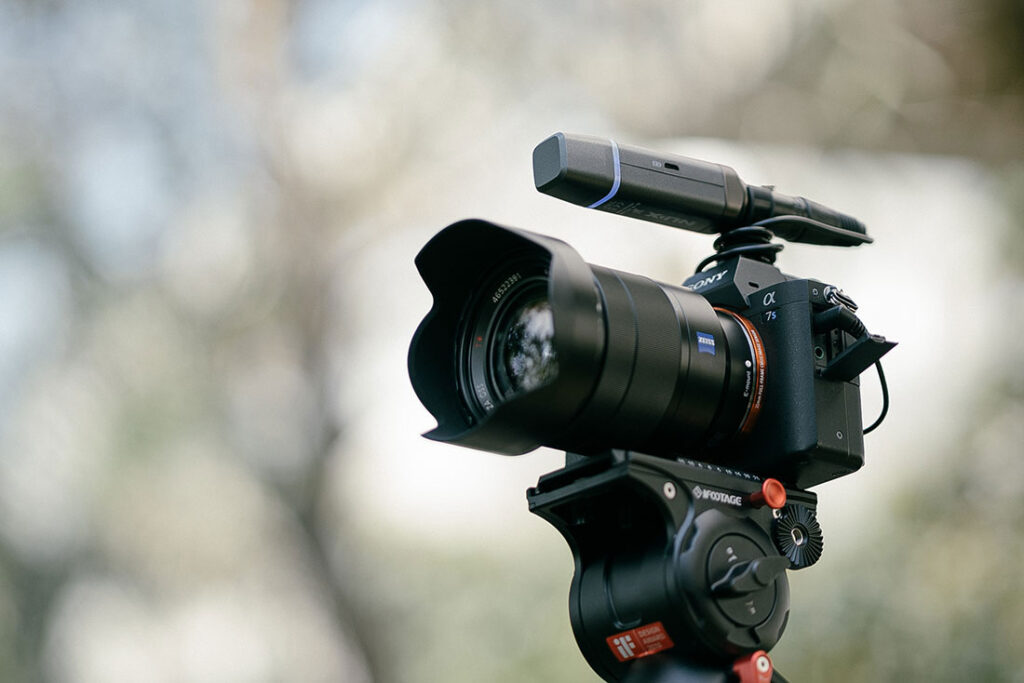

The NUX B-3 PLUS MIC BUNDLE comes with a hot shoe mic adapter XLR to 3.5mm phone jack cable which easily attaches to your camera.



Application Scenarios

Wireless Recording

Conventional Use 1

 Conventional Use 2

The Optional B-3 MA Mobile Phone Accessory

B-3 MA could help to use your B-3 PLUS MIC BUNDLE wireless system with any mobile phone.

Simply you can use for video blogging or live streaming via mobile phones.

The package offers phone holder with cold shoe and 3.5mm TRS to TRRS adaptor cable to fit most mobile phones.

(CTIA stander, like iOS and Samsung devices.)

Features

• 2.4 GHz Broadcast – interference free.
•  24-bit / 44.1kHz audio signal quality.
•  Less than 3.5 ms latency.
•  6 channels – auto pairing with channel selection.
•  Long lasting battery – up to 5 hours.
•  100-feet distance at open air areas.

Specifications（Transmitter & Receiver）

• 2.4GHz operating frequency
•  Latency
  <3.5ms
•  Transmission Range
  Up to 100 feet line-of-sight
•  Dynamic Range
  110dB
•  THD + Noise
  < 0.2% @1 kHz
•  Battery Life
  5hrs
•  Dimensions
•  Transmitter
  107mm(L)×25mm(W)x25mm(H)
•  Receiver
  107mm(L)×25mm(W)×25mm(H)
•  Weight
•  Transmitter
  68g
•  Receiver
  70g

Specifications（NDM-3 Dynamic Microphone）

Pickup Pattern

• Type
  Dynamic Type
• Impedance
  600Ω ± 15% (at 1K Hz)
• Sensitivity
  -48.4 ± 3dB (0dB = 1v/pa)
• Frequency Response
  50Hz ~ 15KHz
• Direction
  Uni-Directional (Cardioid) Polar Pattern
• Operating Temperature
  -30°C ~ 60°C
• Construction
  Sponge Ref-shake Type
• Dimensions
  171mm(L) x 54mm(W) x 54mm(H)
• Weight
  261g
