NUX Mighty 40 MKll

แอมป์กีตาร์ไฟฟ้า NUX Mighty 40 MKll

NUX MIGHTY 40 MKll an unparalleled leap in guitar amplification technology. With its cuttingedge TS/AC-HD amp modeling algorithm, this amplifier offers an expansive range of tones, from crystal-clear cleans to aggressive overdrives, complemented by a rich selection of routable effects and modulations. Its versatile wattage settings (0.5W, 5W, 40W) adapt to any playing environment, from bedroom practice to live performance. The introduction of the NUX Custom Tuned 1 Din speaker in an open-back setup ensures your sound is always full-bodied and expressive. The MIGHTY 40 MKII also includes Pro Scenes for instant access to your pre-saved sounds.

Important Features

Diverse Amp Sounds Enjoy a wide range of 21 amp tones with our advanced amp modeling equipped with the TS/AC-HD amp modeling algorithm.

Fully Routable Effects Path Mix and match effects in any order you like.

More Effects Choose from 43 available effects, including drives, modulations, and delays.

Presets 7 presets are provided along with the ability to store and share presets with other MIGHTY 40 MKII users.

Flexible Power Selection Pick your power level (0.5W, 5W, 40W) to match any playing situation.

Pro Scenes Quick access and recall to your settings with Pro Scenes.

Enhanced Speaker Hear every detail through the custom-designed 10-inch speaker.

Bluetooth Connectivity Includes the NUX NBT-1 Bluetooth Module for audio and MIDI streaming.

Channel Selector Enables quick channel changes with a footswitch, offering seamless live performance Footswitch Input transitions. Ideal for dynamic sound adjustments.

---

The Mighty Amp™ App and Mighty Editor™ software allow you to adjust all signal blocks and parameters. The MIGHTY 40 MKII includes GATE, COMP, EFX, AMP, EQ, MOD, DLV, and RVB signal blocks, all of which can be freely reordered to tailor your sound.

Additionally, the MIGHTY 40 MKII features USB-B audio streaming, enabling it to function as a USB recording interface without the need for complex DAW setups. It supports various routing options, including Normal, Dry Out, Re-amp, and Loopback, which can be adjusted via the Mighty Amp™ App or Mighty Editor™ software. This versatility allows for easy jamming and live streaming with the Loopback feature.

NOTE: The MIGHTY 40 MKII does not include an IR block. However, for recording purposes, simply engage the “Cab Sim”
feature to achieve a cabinet-simulated guitar recording.

Operation

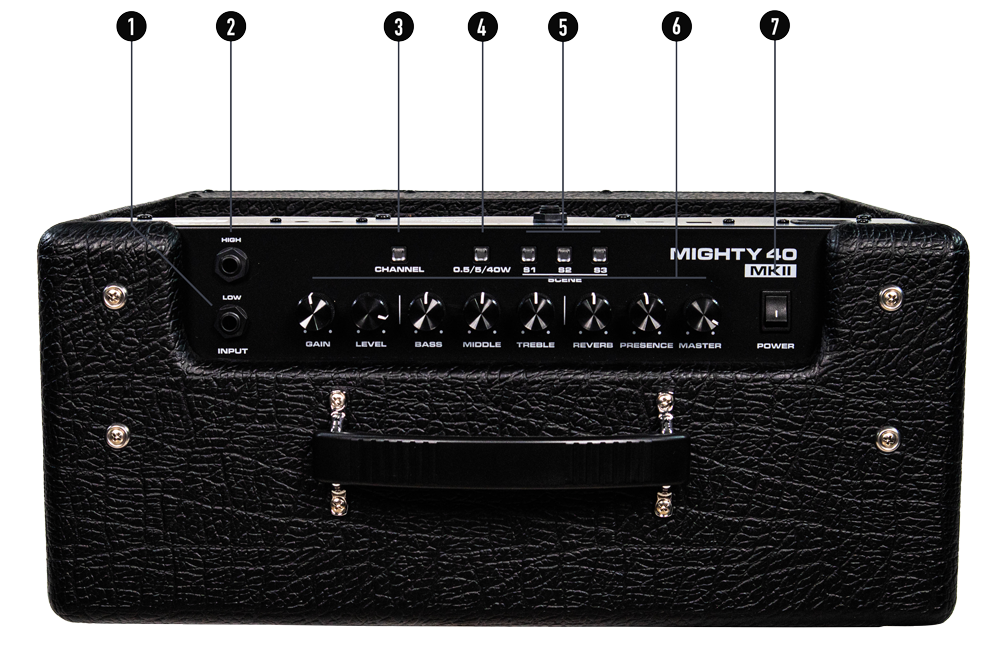

Control Panel

1 LOW Input Jack LCW
Tailored for guitars with high output, such as active pickups or guitars with humbuckers, this input reduces signal strength to prevent clipping and maintain a cleaner sound.

2 HIGH Input Jack
Designed for lower output instruments, this input maximizes the clarity and fullness of your guitar’s sound, perfect for clean tones or natural amp distortion. Ideal for single-coil pickups.

3 CHANNEL Selector
With the amp on, press the CHANNEL switch indicator to change from presets 1 ~ 7.

4 Wattage Selector
Switch easily between 0.5W, 5W, and 40W to match your playing environment. Use 0.5W for low-volume practice, 5W for rehearsals, and 40W for performances, ensuring optimal volume and tone quality.

5 SCENE Selectors
Choose from preset scenes for quick tone changes, catering to different musical styles. Each position combines specific amp settings and effects for easy sound customization, perfect for seamless tone shifts during practice or live play.

6 Control Knobs
Fine-tune your sound with Gain, Master, EQ (Bass/Middle/Treble), Reverb, and Presence.

7 POWER Switch
Toggle the POWER switch to boot-up the amplifier. While the amp is on, the CHANNEL indicator will turn on.

---

Mighty Amp™ App example
To set specific presets (1, 3, 5, 7) for quick access, select them and click the Active. Once done, pressing the PRESET switch will cycle through these chosen presets, streamlining your sound selection process.

Mighty Editor™ example
When you click, the 7 presets will be colored.

Select the presets you wish to use (e.g., 1, 3, 5, & 7) and confirm your choice by pressing the gicon. The Mighty Editor™ will display the active preset, and the interface will indicate your selections with the gicon, making it clear which presets are activated for quick access.

Select the presets you wish to use (e.g., 1, 3, 5, & 7) and confirm your choice by pressing the lil’icon. The Mighty Editor™ will display the active preset, and the interface will indicate your selections with the Iii’ icon, making it clear which presets are activated for quick access.

The SCENE switch, indicated on the device, allows you to select different SCENEs within a preset. This feature is particularly versatile as it enables you to store and switch between various parameter settings and model configurations within each SCENE of a preset, offering enhanced customization for your sound.

You can activate “Sticky Mode” to ensure the amplifier remembers your last selected scene within a preset. This means when you return to that preset, it automatically recalls your previously “sticky” scene, enhancing your ease of use and efficiency during performance or practice.

Features

• • 40 watts Modeling Amplifier.
  • Adjustable wattage – 0.5w I 5w I 40w.
  • TS/AC-HD (White-Box) Amp Modeling algorithm offers realistic playability & feedback.
  • Pedal-friendly amp that works well with your favorite external pedals.
  • 7 presets with ACTIVE and Pro SCENE functions. (PRESET switch toggles ACTIVE ones sequentially. Pro Scenes can store
  • different parameters, even different models of effects and amps.)
  • GATE, COMP, EFX, AMP, EQ, MOD, DLV, RVB effect blocks with free, fully routable order.
  • White-box algorithm EFX offers analog response and natural chaos.
  • Patch Level function for each preset.
  • 60s phrase loop with auto tempo detection drum machine.
  • Intuitive Mighty Amp™ App & Mighty Editor™ edit software.
  • Included NUX NBT-1 Bluetooth Module for Audio Stream and wireless MIDI.
  • USB-8: Mighty Editor™ edit software communication, USB audio stream, and Firmware update.

Specifications

• • Nominal Input Level
    • HIGH: -1 OdBu@1 MQ
    • LOW: OdBu
  • Nominal Aux In Level: -1 OdBu@1 OkQ
  • Headphone Output: 90mW + 90mW (To 33 ohms load)
  • Rated Power Output: 40W
  • Sampling Rate: 48kHz / 32-bit
  • System Latency: 1.42ms
  • Speaker: 1 O”, 4Q
  • Dimensions: 450(L) x 236(W) x 436(H) mm
  • Weight: 9.5kg

Accessories

• • Power adapter
  • NBT-1 Bluetooth Audio & MIDI Adaptor
  • Owner’s manual
  • NUX sticker
  • Warranty card
